Reminiscing: The Honda CB1100RC

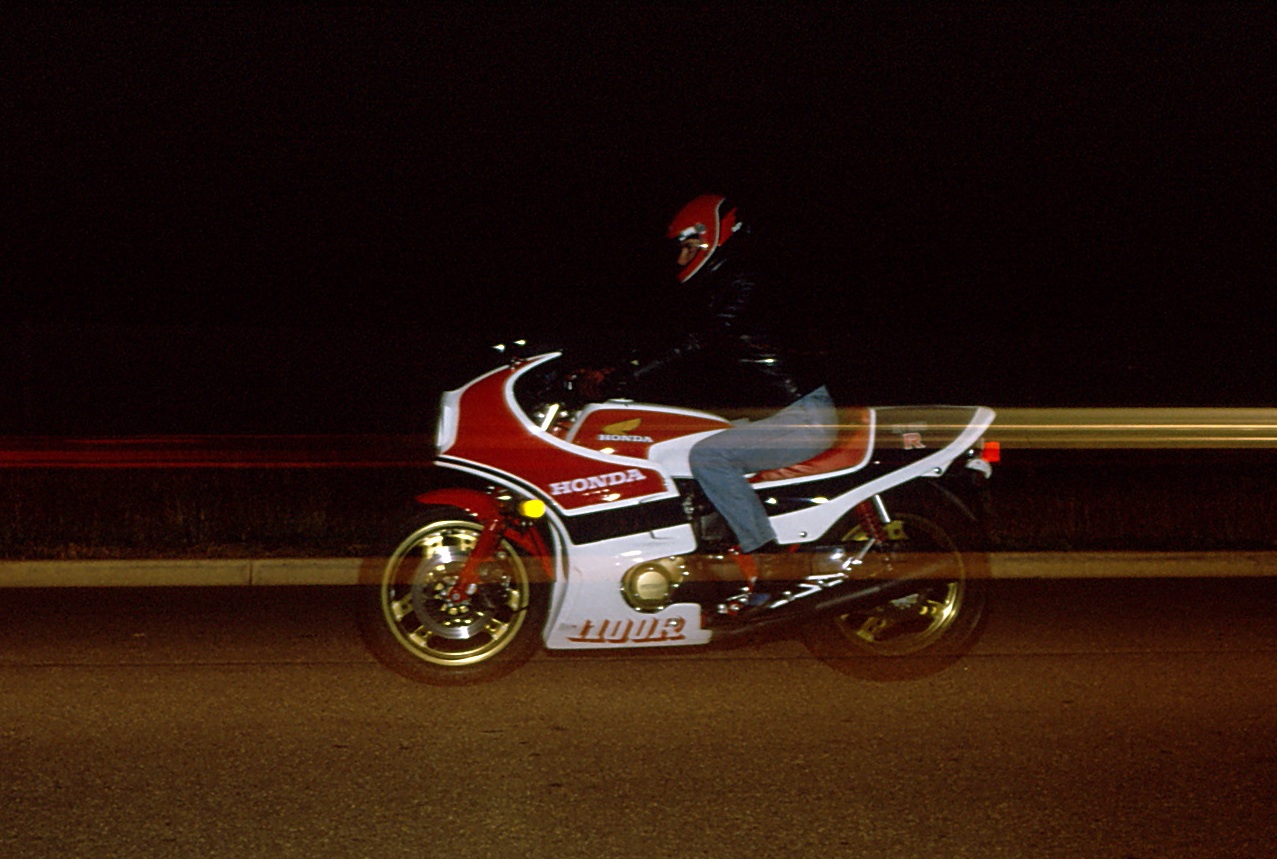

Not a small motorcycle but extremely functional.

In 1982 the there was only one thing better for a Japanese motorcycle enthusiast to see than a Honda CB1100RC and that was more than one. In fact, it was the sight of five of the limited run, homologation specials, that greeted me on the forecourt of Trevena Honda at their Main North road dealership.  Only 200 of the RC model had been imported into Australia, and I was on a mission to secure one for myself.

My current bike, at that time, was a 1979 Honda CB900FZ, the machine the RC was based on. It was in my opinion, a somewhat underrated motorcycle that boasted lightweight, good handling and attractive styling, yet it had been pushed into the background due to the capacity war being waged with the other Japanese manufacturers.

The CB1100RC though was a different kettle of fish. Built primarily to redress the balance of power in production bike racing, it was not cheap. At $5,800 (Aus) it was almost twice the price of the CB900FZ it was based on, although this was tempered somewhat by the fact, that as a limited run special, it would hold its price and potentially appreciate in value.

That first ride home on the RC was an interesting one as it was the first time I’d ridden a motorcycle with a full fairing.  It proved to be quite effective at keeping the wind and weather off the rider although the hands were less well protected.  The footpegs were set slightly higher and a bit more rearward pushing the rider’s knees into the alloy fuel tanks indentations. The adjustable handlebars (a similar system to Laverda’s) were in the dropped position giving a good “feel” from the front end.  The brakes were highly effective causing the forks to compress considerably.  The RC was physically a large machine, but it steered and changed direction with relative ease.

Once at home it was time to indulge in the motorcyclist’s favourite pastime, making adjustments to the bike.  The TRAC anti-dive system on the front forks was set at number one of its four positions, hence the accentuated nose-dive under brakes. This setting was changed to number three, and the air pressure in both forks was set to 25psi (between 23 to 27psi was recommended by Honda).

Air caps on the fork top and the engine oil temperature gauge with warning lights.

Air caps on the fork top and the engine oil temperature gauge with warning lights.

The remote reservoir gas charged FVQ rear shockers had four compression, three extension damping settings and five spring preload settings.  These were adjusted with the spring preload set to three, the compression damping to three and the rebound damping to two.  The eighteen-inch wheels fitted to the RC sported 2.5inch front and 3.0inch rim rear widths respectively.  Checking the standard fitment Japanese Dunlop F11 100/90 V18 and K527 130/80 V18 tyre pressures was another essential job.

Next was to set the handlebars in the “flat” position. This was easily done by loosening the hexagonal through bolt enough to disengage the meshed “teeth” of the lower and upper part of the handlebar, so the upper bars could be tilted into the flat position, and then re-tightened.

A quick run on a favourite stretch of road showed the suspension adjustments had firmed up the big Honda making it more responsive to rider input and the raised handlebars improved the comfort of the riding position.

The owner’s manual was also very comprehensive and more of a condensed workshop manual, showing tolerances and recommended replacement of engine parts in racing kilometres/miles. The regular service schedule for normal road use was fairly standard, and the manual also quoted the CB1100RC as giving 115hp at 9,000rpm and 75kg-m at 7500rpm some 20hp up on the CB900FZ.

All the usual service points on the RC were easily accessible for the home mechanic.  The fairing lower took about five minutes to remove to reach the oil filter and cam chain tensioner, while the fuel tank had to be removed to gain access to the spark plugs and carburettors. The air filter was also easily accessible through the air-box side cover.  The RC was not fitted with a main-stand, but a rear paddock type stand was available from Honda dealers.

Naked RC. It took about forty minutes to undress.

Naked RC. It took about forty minutes to undress.

It became apparent after running in the RC that this motorcycle could be used as a serious high-speed, long-distance sports tourer.  On a favourite piece of road riding the CB900FZ at 120kmh was a comfortable rate of knots, but on the RC this seemed slow, and 140kmh was a comparative trot.  The full fairing was doing its job with very little buffeting, even around the rider’s helmet.  The power delivery of the 1062cc engine was quite linear, with a flat torque curve making hard acceleration deceptive with only a slight jump in power at higher revs.

What did become apparent though was a vibration zone at around 4000-4500rpm that could be felt through the footpegs and handlebars, was more predominant through the large 26lt alloy fuel tank.  This did eventually cause an internal baffle in the tank to break away which sounded like a buzz saw at these revs.  Also, a baffle in the right-hand exhaust became loose and rattled.  Both of these problems were fixed without question under warranty.  The engine did smooth out considerably once out of this “zone”, although this did translate into higher illegal road speeds.

FVQ gas charged remote reservoir shock absorbers.

FVQ gas charged remote reservoir shock absorbers.

The only down sides that the RC did have was a restricted turning circle, thanks to the large fuel tank and fairing, but once this was factored in it never really became an issue. Also carrying a pillion passenger was really not a design prerequisite for the RC.  The pillion part of the seat was higher, and the bulk of the weight of the passenger was behind the rear axle line of the motorcycle.  This really didn’t help the handling of the RC regardless of the suspension settings.

Although the front brakes were Honda’s very effective new twin-piston floating calipers that gripped 300mm ventilated disks, I opted to have the optional braided steel brake lines fitted. These were standard on the U.K. model and gave better initial bite and feel and were a worthwhile investment.

The Honda’s presence on the road was also quite impressive.  This was the first motorcycle I can remember that had car drivers change lanes to get out of the way. Other drivers would slow down just to see what sort of exotic piece of kit it was. Indeed the prominent fairing and bright colour scheme made the motorcycle quite visible to other road users, and it made the rider feel that little bit safer in traffic.

What I didn’t expect was the reaction of other motorcyclists.  In one instance I was told that it was a racer for the road and impractical for everyday use, and there was no way you could use all the power available.  This was from a group of riders, one of whom rode a Laverda Jota!

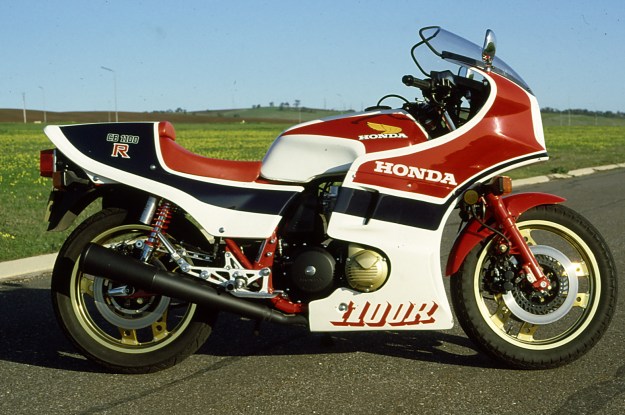

A comfortable sports tourer.

A comfortable sports tourer.

In reality, the Honda CB1100RC was a motorcycle you could commute to work on and use for weekend blasts through the hills.  And for five years I did exactly that and enjoyed every minute of it. The RC’s engine performance was user-friendly, as was the superb handling in just about all conditions. It was a big and heavy bike, and after few hours of scratching on winding roads, the rider would know it. But this just added to the satisfaction of riding this type of motorcycle.  The Honda was also a competent sports tourer that with the handlebars in the “flat” position was quite comfortable over long distances.

Many of the specifications of the CB1100RC were carried over to the CB1100F with improvements (including rubber mounting the engine) that made it more civilised than its production-racing cousin.  Unfortunately, the CB1100R series and CB1100F were also the last generations of big air-cooled four-cylinder bikes from Honda that along with other Japanese models quickly became dinosaurs in the fast-moving technological evolution of the performance motorcycle.

Words Geoff Dawes (C) 2014. Photographs Geoff and Vivienne Dawes © 1982.

Advertisements

The Honda CB1100R Series

The fully faired 1982 CB1100RC Honda.

It ‘s an understatement to suggest that racing success helped build the very foundations of the Honda Motor Company.  It was the driving force to win, instilled by corporation founder Soichiro Honda that the company’s engineering capabilities be proven in the white heat of competition. The forays, starting in 1959 to the Isle of Man TT, to take on the best in the world in Grand Prix racing, proved pivotal to the success of the fledgeling motorcycle manufacturer.

But in 1970’s production racing, and in particular the prestigious Australian Castrol Six Hour production race, this philosophy was faltering. In a class of racing that pitted showroom floor models against each other under racing conditions, Honda had tasted success but once, in the 1971 event, with the venerable CB750.

The unfaired CB1100RB explicitly built for the 1980 Australian Castrol Six Hour race.

The Castrol Six-Hour had become the jewel in the crown of endurance production racing that enjoyed live television coverage in Australia and immense media exposure all over the world.  It was a class of racing with a huge following as it allowed motorcycle owners to see how “their” bike performed against machines from the other manufacturers.  And in an era of unprecedented motorcycle sales, the old adage, “what wins on Sunday sells on Monday”, had never been more true.

Honda held great hope for success in 1979 with the RCB endurance racer inspired CB900FZ, but it was unable to be fully competitive against its larger capacity rivals from Suzuki and Yamaha. Although claiming a creditable third place the previous year, Honda’s own CBX1000 six-cylinder flagship did not have the success that Honda desired.

And the war for production racing supremacy was not just being waged in Australia, but also South Africa, New Zealand and the U.K which was also a part of Honda’s dilemma.  This required contemplation and a new approach to the race, or rather, the regulations.

The 1979 CB900FZ

The CB1100R series of motorcycles was created out of production racing necessity.  Honda became the first Japanese manufacturer to build a production homologation special for the road,  manufacturing enough road-registerable models to stay within the rules.

In a clever bit of reverse engineering Honda looked to its CB900FZ road bike, which had been based on the highly successful RCB1000 endurance racer.  It used lessons learnt from the RCB to transform the CB900F into a specialist endurance production racer. There was some irony here as Honda was also developing in parallel the RSC1000, by necessity based on the CB900F, to meet the regulations for the new prototype World Endurance Championship of 1980.

Honda Australia rider Dennis Neil was recruited by Honda Japan to develop the new machine and was responsible for testing it in both Australia and Japan. One hundred of the CB1100RB were fast-tracked and registered by Honda to make the September cut off deadline for entry into the 1980 Castrol Six Hour.  This was an unfaired version of the bike, which was unique to the R series.  European models and those released in most other markets were fitted with a half fairing.

The faired version of the CB1100RB sold in South Africa the UK and New Zealand.

The faired version of the CB1100RB sold in South Africa the UK and New Zealand.

The evolution of the CB900F to transform it into the CB1100R, though, was quite extensive.

Although the engine shared the same 69mm stroke of the CB900F, the bore was increased from 64.5mm to 70mm to give an engine capacity of 1062cc, the same as variants of both the RCB and RSC endurance racers. The cylinder block was solid, doing away with the air gap between the two outer and two inside cylinders. The compression ratio was increased, up from 8.8:1 to 10:1, and many of the engine internals were beefed up, including a wider primary drive chain, strengthened clutch, conrods, big end bearings and gudgeon pins while the pistons became semi-forged items and the camshafts had sportier profiles. The standard gearbox was retained, although final overall gearing was raised by ten percent, and carburation also remained the same as the CB900F using four constant velocity Keihin VB 32mm units. This resulted in CB1100RB producing 115hp (85kw) at 9000rpm and 72ft.lb  (98N-m) of torque at 7,500rpm, compared to 95hp (69.8kw) at 9000rpm and 57ft.lb (77.4N-m) at 8000rpm of the CB900FZ.

The chassis was strengthened with extra gusseting and the detachable lower frame rail of the CB900F, designed for ease of engine removal, now became a solid part of the frame.  The front engine mounts were also heavy-duty alloy items, which no doubt all helped to improve the rigidity of the chassis.  The 35mm CB900F front forks were replaced with new 38mm units that used air assistance to adjust the spring rate via a linked hose from each fork and the rear shock absorbers carried a finned piggyback reservoir to help cool the damping oil.  Honda reverse Comstar wheels were fitted although the diameters remained the same as the CB900F, with an 18inch rear wheel and a 19inch front. But the rim widths were wider, up from 2.15 inches for both the front and rear of CB900F to a 2.75 inch rear and a 2.5 inch front for the CB1100RB. This was to accommodate the new generation tyres developed for the race due to the intense competition between tyre manufacturers. Honda also introduced for the first time their dual twin-piston floating calipers that gripped solid 296mm disks.

A single fibreglass seat unit that also housed the toolkit took the place of the CB900F’s dual seat. The fuel capacity was increased from 20 litres to 26 litres with a massive alloy fuel tank.  The instruments and switchgear were taken straight off the CB900F, but the duralumin handlebars were changed to multi-adjustable items that could be replaced quickly in the event of a crash. The exhaust system was visually similar to the CB900F, being a four into two, but on the CB1100RB it was freer flowing and utilised a balance pipe just ahead of the two mufflers. It was also finished in matt black as opposed to chrome and was well tucked in. The pulse generator and ignition cover on either end of the crankshaft were reduced in size and chamfered to also help improve ground clearance.  The foot pegs were rear-set and raised slightly on new lighter alloy castings. Honda was quite proud of achieving a fifty-degree angle of lean for the RB without anything touching down. This was extremely important at such a tight circuit as Amaroo Park where the Castrol Six Hour was held.

Single seat unit housed the toolkit.

Single seat unit of the RB housed the toolkit.

However, the Willoughby District Motorcycle Club did not welcome the appearance of the CB1100RB at the 1980 Castrol Six Hour.  The organisers of the event argued that the CB100RB did not conform to the rules for a touring motorcycle, as it had no provision to carry a pillion passenger. Honda quite rightly pointed out that this was not written into the supplementary regulations for the event and indeed the organisers had to yield. It should also be pointed out that the organisers had turned a blind eye in previous years to entries such as the 750 and 900 SS Ducati’s that also could not carry a pillion passenger.

It’s history now that Wayne Gardner and Andrew Johnson on the privately entered Mentor Motorcycles CB1100RB won the race, held in wet conditions, ahead of the Honda Australia entry of Dennis Neil and Roger Heyes.  But it was a controversial win and not the clear-cut victory Honda would have hoped for. Suzuki Australia claimed that a lap scoring error had taken the win away from John Pace and Neil Chivas on a GSX1100.  After three appeals the Suzuki team were eventually awarded the win, only for Mentor Motorcycles to appeal against the ruling and be reinstated just four weeks before the 1981 race. To top all this off, the WDMC released the supplementary regulations for the race, which specifically banned solo seats.  Honda turned its back on the 1981 race and once again studied the rules.  Some solace was sought when the CB1100RB won all of the eight 1981 MCN Streetbike series in the UK, with seven victories going to series winner Ron Haslam.

The end result of all of the above culminated in the 1982 CB1100RC, which came equipped with a dual seat and rear footpegs – and also a full fairing. A removable cover was used to give the appearance of a single seat, while the tools were moved to a lockable toolbox that was hung off the seat subframe just behind the left rear shock absorber.  The rear suspension units were now inverted reservoir gas charged FVQ units with four-way compression damping and three-way adjustable extension damping with five spring preloads.  Front fork diameter was increased from 38mm to 39mm with separate air adjustment on the top of each fork leg.  The forks also boasted a new innovation from Honda, Torque Reactive Anti-dive Control or TRAC. This was a mechanical four-way adjustable system that utilised the pivoting torque of the brake calipers to close a valve in the fork leg, under braking, to increase compression damping which limited front end nose-dive.

The fully faired 1982 CB1100RC Honda.

The fully faired 1982 CB1100RC Honda.

The front brake disks now became ventilated while 18-inch “boomerang” spoked Comstar wheels graced both ends of the RC.  The rear rim width was now 3.0 inches, up from 2.75 on the RB, while the front rim width remained 2.5 inches but on an 18 instead of 19-inch wheel.  Steering rake was increased by half a degree to 28 degrees and trail was shortened from 121mm to 113mm mainly to accommodate the effects of the new 18-inch front wheel.  The wheelbase also became slightly longer from 1488mm of the RB to 1490mm for the RC but still 25mm shorter than the CB900F.

The instrument “pod” now was now mounted in the nose of the full fairing, and the tachometer became electronic as opposed to the cable driven item of the RB.  There was also the inclusion of an oil temperature gauge mounted with the warning lights on the top steering yoke.  The full fairing was lightweight fibreglass, reinforced with carbon fibre, and its lower half was quickly removable utilising six Dzus type fasteners and two screws.  In the engine department, the only significant mechanical change was a stronger cam chain tensioner and 1mm larger Keihin VB 33mm CV carburettors. Claimed horsepower and torque remained the same as the CB1100RB, although South African and New Zealand models were recorded as giving 120hp.

Honda dominated the 1982 Castrol Six Hour even though Suzuki unleashed its 1100 Katana with special wider wire wheels.  Wayne Gardner and Wayne Clarke took the top place on the podium with three other CB1100RC’s finishing behind them.  The nearest Suzuki Katana was a lap down in fifth. Honda again dominated the British MCN Streetbike series winning all the races with Ron Haslam and Wayne Gardner sharing the spoils and series title. For 1983 new restrictions were put in place for production racing, which limited engine capacity to 1000cc and effectively made the CB1100RC redundant.

The Honda CB1100RD. Note the nose of the fairing in line with front axle line.

The Honda CB1100RD. Note the nose of the fairing in line with front axle line.

Honda still produced one more model in the series, the 1983 CB1100RD, the main differences from the RC being a rectangular tube swingarm, which was slightly wider for the new fatter tyres, and it also carried upgraded rear shock absorbers. The nose of the fairing was also pulled back to be in line with the front axle to meet racing regulations.  Aesthetically the blue stripe ran up the sides of the headlight and not underneath it while the blue and red paintwork appeared almost metallic in its finish. The Honda winged transfer on the tank was grey, black and white as opposed to yellow and white of the RB and RC.

The overall finish of the RD appeared a notch above the RB and RC, and it was suggested that Honda did not have the capacity on its production line to cope with the limited number run required to homologate these two models.  Honda’s Racing Services Centre (which became the Honda Racing Corporation in 1982) was said to have been responsible for assembling both the RB and RC.  An upgraded production line in 1983 enabled Honda to accommodate the RD.  This does make sense and a good reason for the better quality of finish of the RD. It also makes the RB and RC somewhat unique as they would have been assembled by Honda’s racing department.

How limited in numbers was the CB1100R series?  1,050 of the 1981 RB were reported to have been built, although whether this figure includes the 100 fast -racked unfaired machines for the 1980 Castrol Six Hour is unclear.  It seems that 1,500 of both the RC and RD were made, giving a number of 4,050 in total.

Words Geoff Dawes © 2013. Photograph Geoff Dawes (C)1982. Images http://www.nirvanamotorcycles.com, http://www.mctrader.com.au, http://www.worldhonda.com, http://www.carandclassic.co.uk, http://www.flkr.com.
